FZ-07 (2014 - 2017)

  • $269.95
    Unit price per

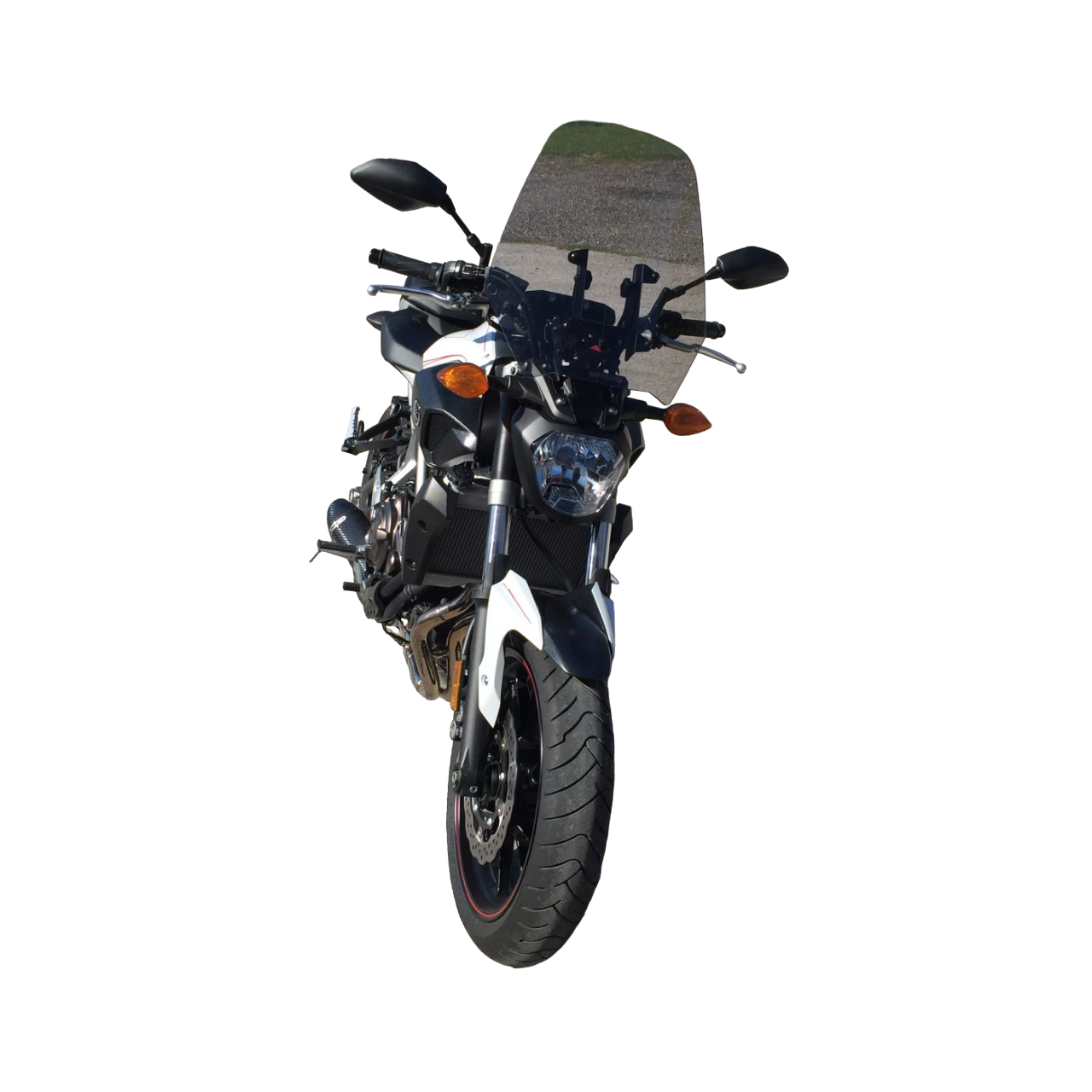

Complete MadStad Adjustable Windshield System for your Yamaha FZ-07 (2014 - 2017)

Transform your ride
MadStad's patented mounting system allows riders to adjust the height and angle of their motorcycle windshield resulting in much smoother airflow, better wind protection and a more comfortable ride than any fixed windshield can provide.

What's included in the kit
Our complete drop-in system is custom-made for your bike and includes everything needed to mount and position the shield. Your bike will not require any modification.

  • Black base brackets
  • MadStad Quick-Release adjustable brackets
  • Acrylic touring windshield (adjustable)

We've created a quick-swap dual windshield system that mounts in front of your instrument cluster. The tall adjustable touring screen lets you dial in the height and angle for comfort at any speed while still looking over the top of the shield, even with your visor open. The brackets and adjustable shield pop off in seconds, no tools required to go back to naked bike configuration. Or get the optional quick-release fly screen for around-town with some basic wind protection. Our setup is rock solid bolted to metal fixtures on the bike, and locks securely in place as if it came from the factory.

NOTE: The fly screen is not a stand-alone product, is not adjustable and does not attach to the bike without first getting the touring system. It pops on and off just as quickly and easily as the touring shield and brackets, no tools required.

**To add the fly screen as a separate item choose 11 inch for size, Extra Dark for color, Fly Screen for style, after adding the main system to your shopping cart.

Size and Color
While the MadStad windshield systems are fully adjustable, we recommend starting with the appropriate shield size relative to rider height. These are general recommendations and can vary depending on your inseam, seat height and riding position. See measurement details below.

5'6" to 5'8" (168 - 173 cm) 18" (450 mm)
5'9" to 6'0" (175 - 183 cm) 20" (500 mm)
6'1" and taller (185+ cm) 22" (550 mm)

HOW TO MEASURE:  Sit on your bike in riding position and run a tape measure or ruler straight up from the gas cap. Look straight head and estimate about where your chin level is on the tape, then add either 4 or 5 inches, whichever results in an even number. That number is our windshield size in its lowest position. For example, if your chin level appears to be at about 15 inches on the tape then our 20 inch windshield (15 + 5) will be at about your chin level at its lowest position. This means you will be looking over it with room to slide it up 2 inches in our brackets if you wish. That is what we are aiming for, not any higher than chin or mouth level at its lowest position.


Just installed new windscreen and took my fz07 for a test ride. Amazing! No wind at all and it looks great. Packaging was great and quality seems top notch.
Thanks....will recommend this to my friends.
Patti W., New Brunswick Canada


INSTALLATION VIDEO  (Publisher Ringding Youtube Channel) https://youtu.be/fC16X7kwxLo


All MadStad windshields are made from 3/16" (4.5 mm) thick cast acrylic and are available in six different tint colors. See photos bar for comparison image.

Satisfaction Guaranteed
If you are not 100% satisfied with your purchase return it within 30 days. See our return policy details under the FAQ page and buy with confidence.
