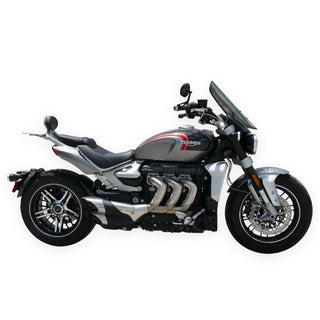

Rocket 3 R / GT (2020 - up) Adjustable Shield System
Adjustable Pivoting Windshield System for your Triumph Rocket 3 R or GT
Transform your ride
Is it a laid-back fly screen, or is it an upright touring shield? It's both! MadStad's new adjustable bracket system allows riders to keep the laid-back angle of the stock shield for around-town riding, or pivot and lock the shield forward for great highway wind protection. Either way you can adjust the height and angle of the shield for smooth airflow, better wind protection and a more comfortable ride than any fixed windshield can provide. It only takes seconds to snap the system from upright to laid back, and no tools are needed.

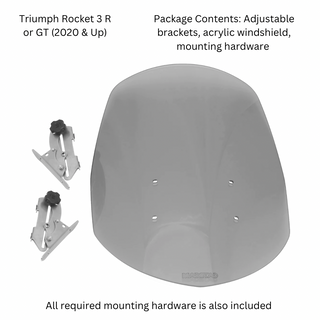

What's included in the kit
Our complete drop-in system requires no modification and includes everything needed to mount and position the shield:

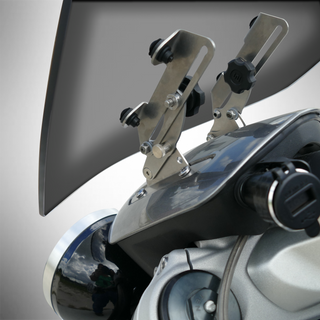

- Dash-mount pivoting windshield brackets
- Touring windshield

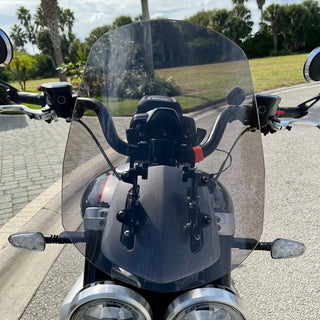

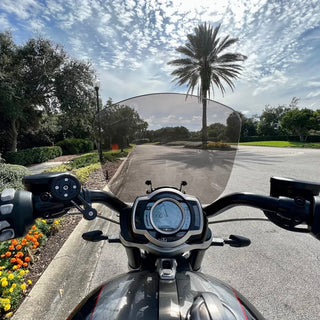

In stock mode the shield is positioned down against the fairing, just like the stock shield on the Rocket 3 GT. You will still get wind protection like this because our shield is quite a bit larger than stock. The magic happens when you pull out two locking plungers which allows the system to pivot up and lock in the forward position. Now you can have highway comfort without turbulence, fully adjustable like all of our other systems. When tilting the brackets back down again there is no need to change the angle or height so you can instantly snap back to highway mode without any further adjustments.
Will our brackets work with the stock GT shield? Yes, but you can see in the photos how small that factory shield is (10" wide by 13-3/4" tall) so you won't get much wind protection out of it.
Size and Color
While the MadStad windshield systems are fully adjustable, we recommend starting with the appropriate shield size relative to rider height:
|RIDER HEIGHT||SHIELD SIZE|
|5'7" to 5'10" (170 - 178 cm)||18" (45 cm)|
|5'11" to 6'1" (180 - 185 cm)||20" (50 cm)|
|6'2" and taller (188+ cm)||22" (55 cm)|

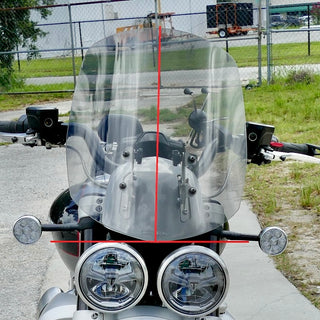

How To Measure: Get a tape measure or long ruler and sit on the bike in riding position. Set the tape measure straight up from the top center of the tank and look straight ahead, then estimate about where your mouth level is on the tape. Add three inches and that is most likely the correct shield size. For example, the top edge of our 20 inch windshield is at the 17" level when pivoted forward and set to the lowest height setting. If your mouth level is at about the 17 inch mark then you would order the 20 inch shield because you should see over it no problem, but could also raise it up another inch or two if you like. The list below shows the height range of each of our windshields for the Rocket 3 R and Rocket 3 GT, so use this chart along with your tape measure to determine the best shield size for you:
MadStad shield height above the gas tank:
18 inch shield: 15-17 inches
20 inch shield: 17-19 inches
22 inch shield: 19-21 inches
24 inch shield: 21-23 inches
If you are not 100% satisfied with your purchase return it within 30 days for a full refund. See our return policy details under the FAQ page and buy with confidence.
