Low Rider FXDL 2014-2017

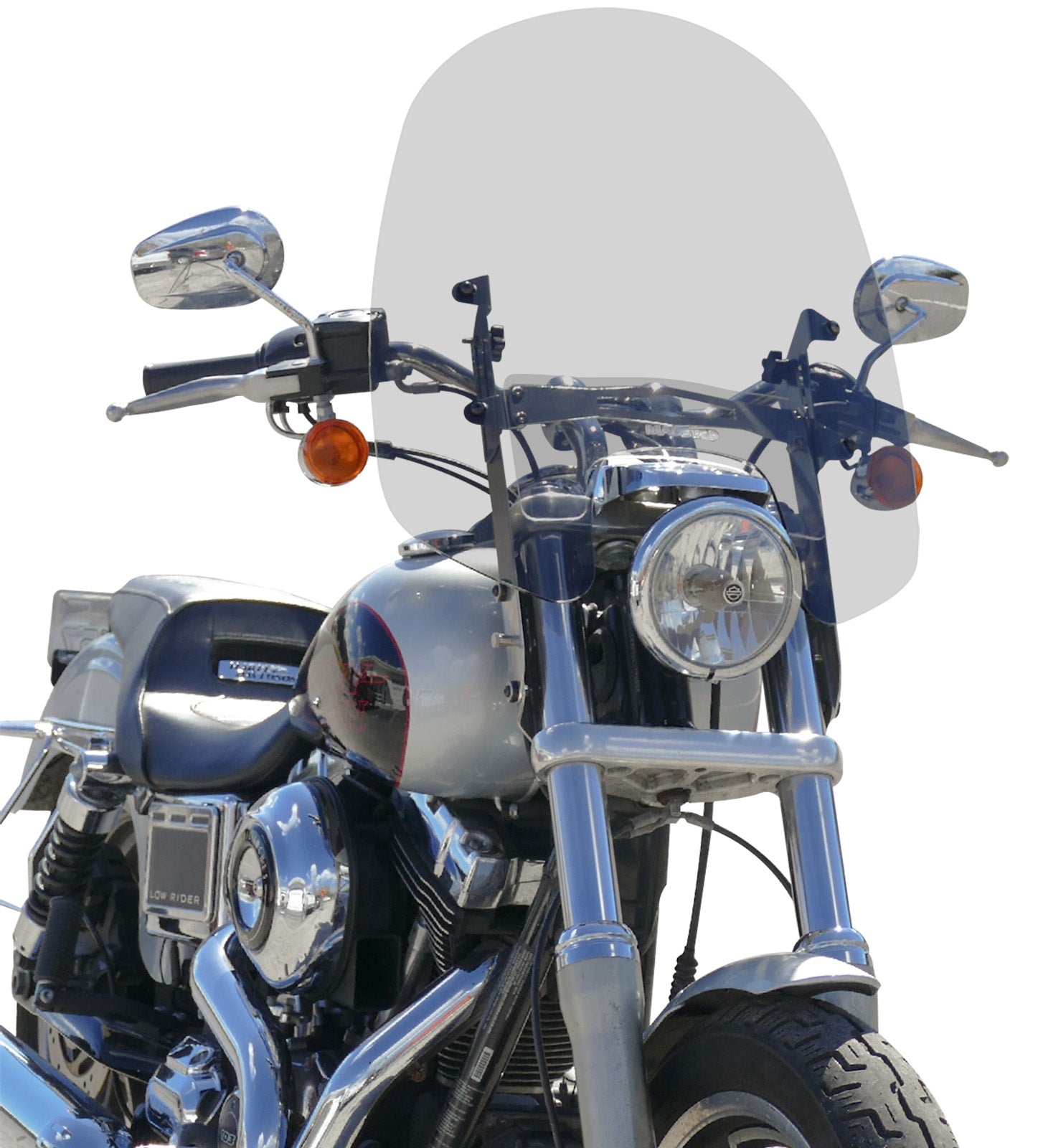

MadStad Adjustable Quick-Release Windshield System for your Harley Low Rider (2014-2017)
Transform your ride
MadStad's patented adjustable windshield system is now a quick-release made for the Low Rider. Our adjustable brackets allow riders to adjust the height and angle of the shield to dial in the smoothest possible ride so you can look over the shield, not through it, even at highway speeds. It snaps on and off of our custom fork brackets in seconds, no tools required, and locks in place securely.

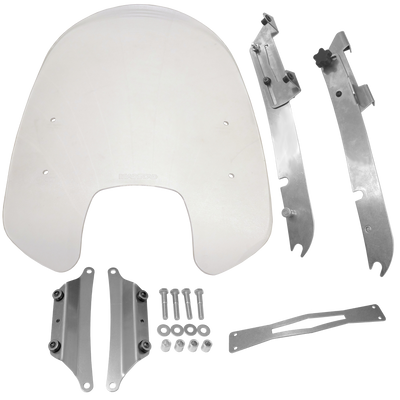

What's included in the kit
Our complete drop-in system is custom-made for your bike and includes everything needed to mount and position the shield. Your bike will not require any modification.
- Stainless steel finish fork-mount brackets
- MadStad quick-release adjustable brackets
- Center deflector and brace
- The acrylic front windshield (all are 20.5" wide at their widest point)
Our sturdy stainless steel fork brackets mount solidly to your fork pinch bolts and provide the mounting base for our adjustable bracket system. A horizontal brace holds the brackets solidly together with a center deflector that blocks airflow coming over the headlight, even if you raise our shield. This lets you set the shield for your own height and riding position without a center blast of air to ruin your wind protection.
Size and Color
While the MadStad windshield systems are fully adjustable, we recommend starting with the appropriate shield size relative to rider height.
|RIDER HEIGHT||SHIELD SIZE|
|5'5" to 5'7" (165 - 170 cm)||16" (41 cm)|
|5'8" to 5'10" (173 - 178 cm)||18" (46 cm)|
|5'11" to 6'1" (180 - 185 cm)||20" (51 cm)|
|6'2" and taller (188+ cm)||22" (56 cm)|
These are general recommendations and can vary depending on your inseam, seat height and riding position. We can also accommodate extra short or tall riders by special request.

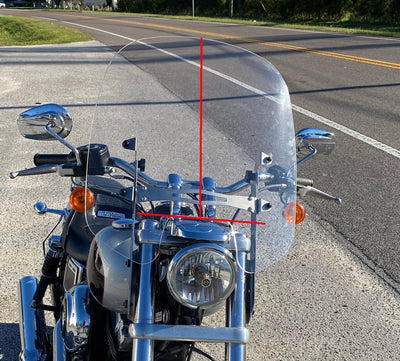

HOW TO MEASURE: While sitting on the bike, hold a tape measure straight up from the top of the speedometer and estimate about where your mouth level is as you look straight ahead. Then add 2 inches and this should be the correct shield size. For example, if you estimate that your mouth level is at the 16" mark above the top of the speedometer then the 18" shield size should be correct. If your mouth level is 17" above the speedometer then you would still order the 18" because you have not reached the next shield size which is 20". You don't want to order a shield that is too tall because you may not be able to look over it. Our windshields are adjustable so you can always raise them up 1 to 2 inches.
All MadStad windshields are made from 3/16" (4.5 mm) thick cast acrylic and are available in for different tint colors. See photos bar for comparison image.
If you are not 100% satisfied with your purchase return it within 30 days. See our return policy details under the FAQ page and buy with confidence.
